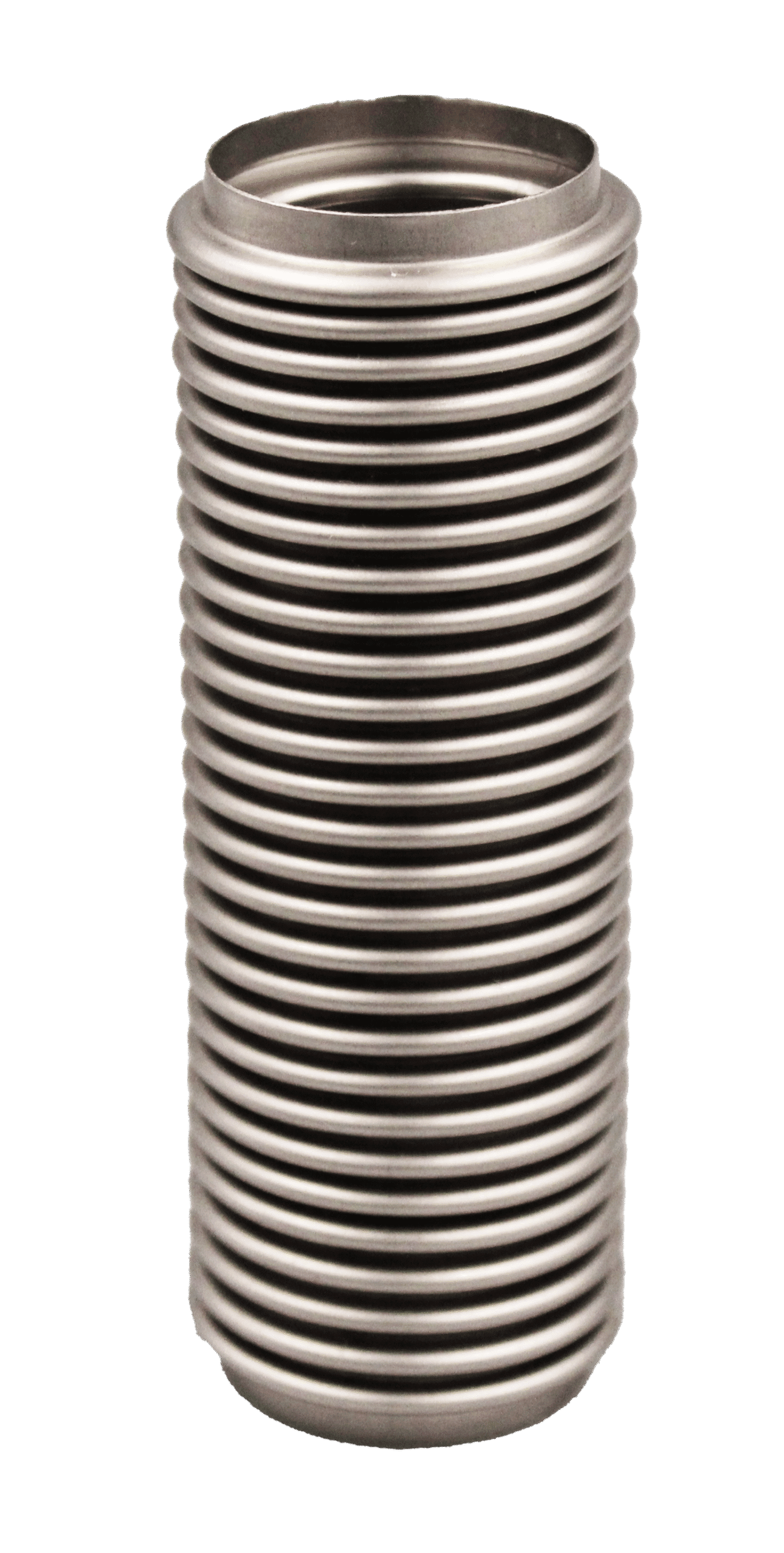

When it comes to bellows, the choice between single-ply and multi-ply constructions can make a significant difference in performance and longevity. With our unique hydroforming process each convolution shape on our metal bellows is perfect along the profile, ensuring longer lifespans and superior performance. Each type has unique characteristics tailored to specific industrial needs. At Alloy Precision Technologies, we understand that the right bellows construction can be the key to success in your application. Here’s an in-depth look at these options and why selecting the correct ply for your metal bellows is crucial.

Single-Ply Bellows: Precision and Simplicity

What Are Single-Ply Bellows?

Single-ply bellows consist of a single sheet metal tube or ply, designed for low pressure and high spring rate applications. Single-Ply Bellows are often used where there is small vibrations and thermal movements. They compensate for misalignments in mechanical systems. They are the most straightforward bellow type, offering a balance between flexibility and strength.

Benefits of Single-Ply Bellows

  • Precision: Single-ply bellows provide high precision and are ideal for applications where minimal deflection is required. This precise control is essential in environments where even minor misalignments can lead to significant issues, ensuring optimal performance.
  • Cost-Effectiveness: With fewer materials and simpler construction, single-ply bellows are often the most cost-effective option. This makes them an attractive choice for projects with tight budgets or where cost-efficiency is a primary concern.
  • Lightweight: The single layer makes them lighter, which is beneficial in weight-sensitive applications. This reduced weight also contributes to easier installation and less strain on surrounding components.

Applications of Single-Ply Bellows

  • Vacuum Technology: Their simplicity and precision make single-ply bellows suitable for vacuum sealing in semiconductor manufacturing. The exacting nature of this technology demands components that can maintain a consistent seal under varying pressures.
  • Optical Systems: Single-ply bellows are often used in sensitive optical systems where precise alignment is crucial. They ensure that optical components remain perfectly aligned, maintaining the accuracy and quality of optical paths.
  • Microelectronics: In environments that require minimal vibration and movement, single-ply bellows are the perfect fit. Their ability to provide stable connections without excessive movement helps protect delicate electronic components.

Multi-Ply Bellows: Maximum Strength and Longevity

What Are Multi-Ply Bellows?

Multi-ply bellows can consist of three, four, or even five layers of thin metal sheets or plies. This construction provides the highest level of strength, flexibility, and longevity, making them suitable for the most demanding applications. Multi-Ply Bellows provide stress support and a low spring rate.

Benefits of Multi-Ply Bellows

  • Unmatched Durability: With multiple layers, multi-ply bellows offer the best resistance to high pressure and extreme conditions. This durability is essential in environments where bellows must perform reliably over long periods under severe stress.
  • Superior Flexibility: The ability of each layer to move independently allows multi-ply bellows to accommodate significant movements without failure. This flexibility is particularly valuable in applications with large thermal or mechanical displacements.
  • Extended Lifespan: The distribution of stress across multiple layers significantly reduces wear, resulting in a longer service life. This extended lifespan minimizes downtime and maintenance costs, making multi-ply bellows a cost-effective solution in the long run.

Applications of Multi-Ply Bellows

  • Oil and Gas Industry: In environments where equipment is exposed to harsh chemicals and high pressures, multi-ply bellows ensure reliability and safety. Their robust construction is vital for maintaining the integrity of pipelines and valves in these critical systems.
  • Power Generation: Multi-ply bellows are used in power plants to accommodate thermal expansion in pipelines and maintain the integrity of critical systems. Their ability to handle extreme temperatures and pressures helps prevent costly failures in energy production.
  • Heavy Machinery: The robustness of multi-ply bellows makes them suitable for use in heavy machinery, where they absorb shock and vibration over extended periods. This helps protect vital machine components, ensuring smooth operation and reducing maintenance needs.

Why Choose Alloy Precision Technologies for Your Bellows Needs?

At Alloy Precision Technologies, we specialize in manufacturing single-ply and multi-ply metal bellows, including up to five-ply constructions. Our metal bellows are designed to meet the highest standards of quality and performance, tailored to your specific application requirements. Whether you’re in aerospace, oil and gas, power generation, or any other industry, our team of experts is here to deliver the perfect solution.
